A final drive on an excavator is essentially the gear reduction unit that converts the power delivered by the machine’s drive system (often from hydraulic motors) into the high torque needed to move its tracks. Here’s how it works:
Key Functions
- Gear Reduction: The final drive takes a relatively high-speed, low-torque input from the hydraulic motor and reduces the speed while multiplying the torque. This conversion is critical because heavy machinery like an excavator requires high torque at low speeds for effective movement, especially when manoeuvring over rough terrain or carrying heavy loads.
- Power Transmission: The unit typically features a set of gears—commonly a combination of pinion and ring gears or even a planetary gear system—that efficiently transfer rotational energy to the drive sprocket, which in turn moves the tracks.
- Differential Action for Steering: In many excavators, there are final drives on each side of the undercarriage. By independently controlling the torque delivered to the left and right tracks, the system not only propels the machine forward but also allows for differential steering. This means that by varying the output on each side, the operator can turn or pivot the excavator without needing additional steering mechanisms.
How It Operates
- Power Delivery: The engine powers a hydraulic pump, which supplies pressurized fluid to hydraulic motors attached to each final drive.
- Conversion and Reduction: These hydraulic motors rotate at high speeds. The final drive unit, through its gear arrangement, reduces this speed while increasing the torque. The design is optimized to handle high loads and provide durability in harsh operating conditions.
- Track Movement: The output from the final drive is connected directly to the drive sprocket that engages with the track. This direct link ensures that the increased torque is efficiently transmitted to move the heavy tracks of the excavator.
Additional Considerations

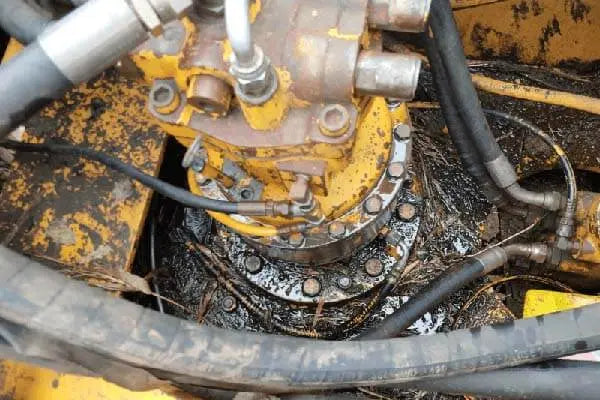

- Durability and Maintenance: Final drives are built as sealed units to protect the gear mechanisms from dirt, water, and debris. They use specialized lubricants to ensure smooth operation and longevity under extreme working conditions.
- Integration with Hydraulic Systems: Modern excavators often integrate the final drive closely with hydrostatic transmission systems. This integration enhances efficiency and provides smoother, more responsive control to the operator.
Other names for a Final Drive are Track Motor, Travel Motor, Travel Gearbox, Reduction Gearbox, Drive Motor & Track Drive
In summary, the final drive is a critical component in an excavator’s undercarriage system. It not only transforms the engine’s power into the torque needed for heavy lifting and movement but also plays a vital role in the machine's steering and overall manoeuvrability.
